EcoSmart Bioethanol Burners

Home · Fire features · EcoSmart Fire · Bioethanol burners

An EcoSmart burner is the heart of every bioethanol fire: a stainless steel fuel box that burns bioethanol with a real flame, with no flue, gas line or electricity. On its own it turns a fireplace opening, a stone surround or a bespoke fire feature into a working fire, indoors or outdoors. We supply EcoSmart burners from our showroom in San Pedro de Alcántara.

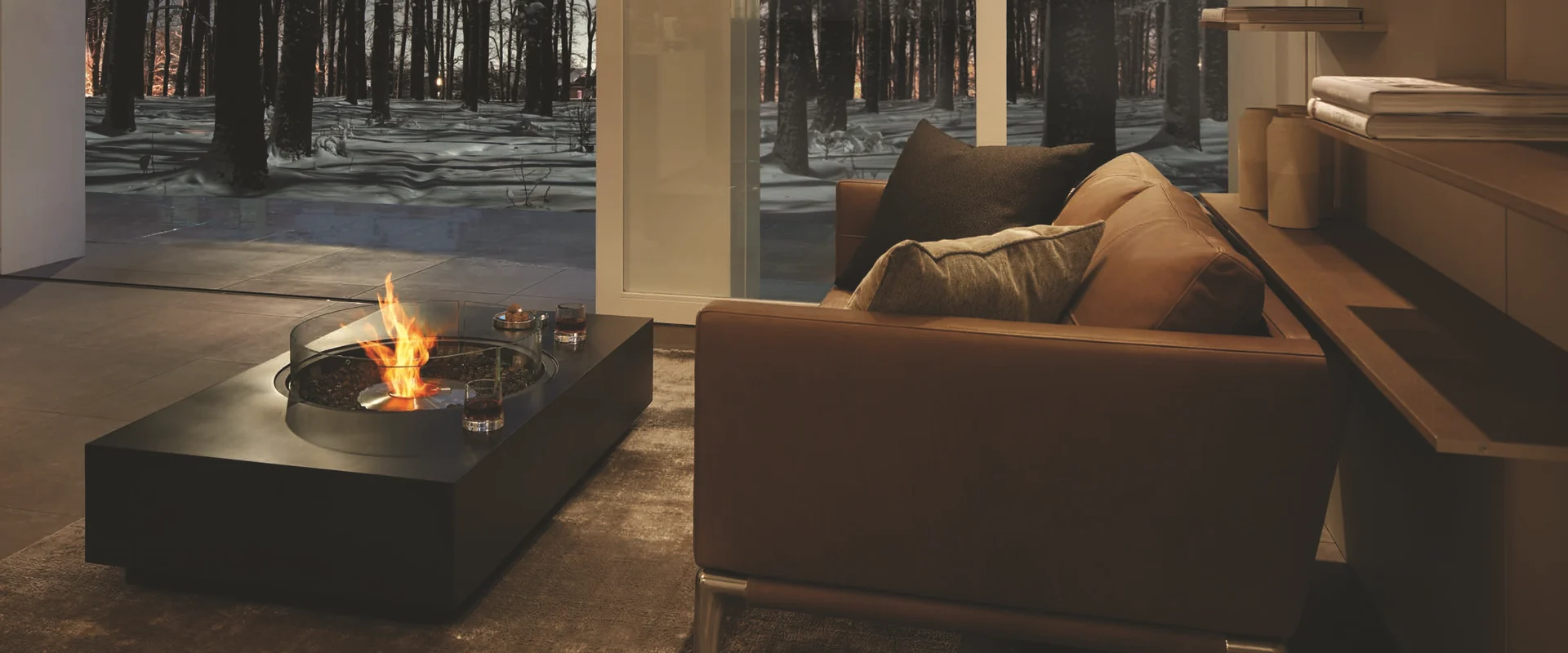

Black EcoSmart Martini 50 bioethanol fire table with a round glass screen burning in a living room beside a leather sofa, with tall windows onto a snowy forest

Convert a Wood-Burning Fireplace

Many villas have a wood-burning fireplace that is hardly ever lit: logs to store, smoke, ash and a chimney to sweep. A bioethanol burner set into the existing hearth brings it back to life with a real flame that lights and goes out in seconds, with no smoke, soot or ash, and no flue needed. For a traditional look, EcoSmart’s fireplace grates hold the burner inside a steel grate, so the converted fireplace still reads as a log fire.

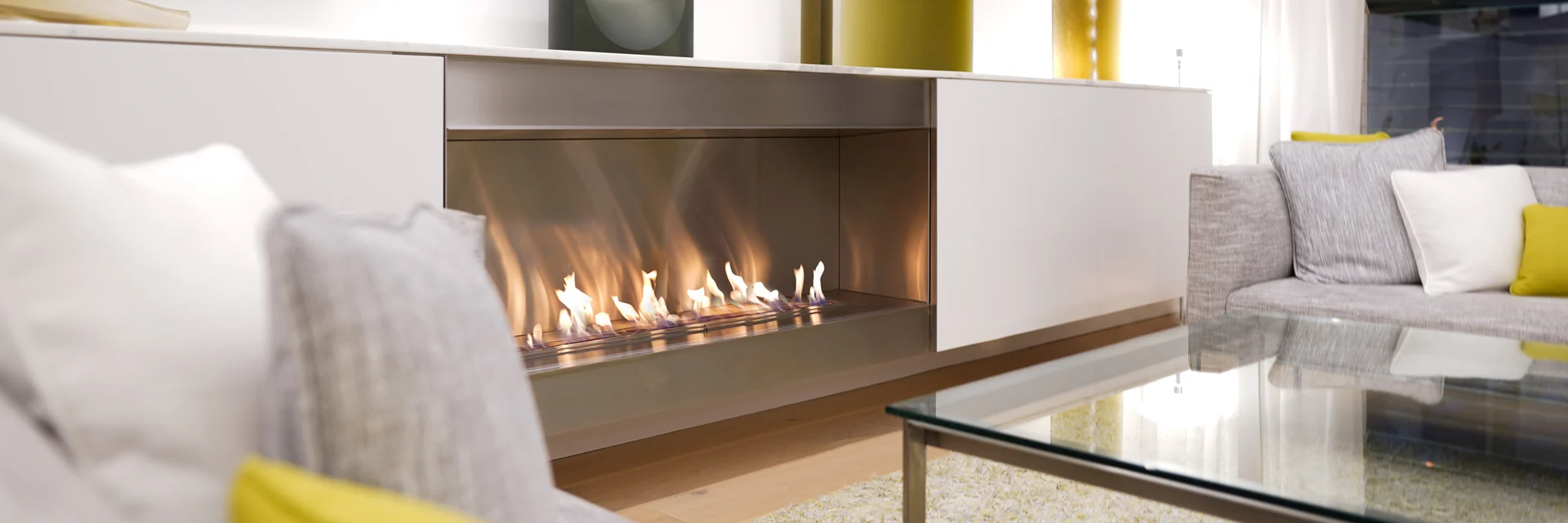

EcoSmart XL1200 bioethanol burner with a long line of flame in a white built-in fireplace, in a living room with a white sofa and yellow cushions

Indoors and Outdoors

The same burners work in an interior fireplace and in an outdoor fire feature: built into a stone or concrete surround, a bespoke fire table, a terrace wall or a planter. Each one is filled with bioethanol, lit with a long lighter and put out with the closing tool; burn time depends on the model and on how far the flame is turned up.

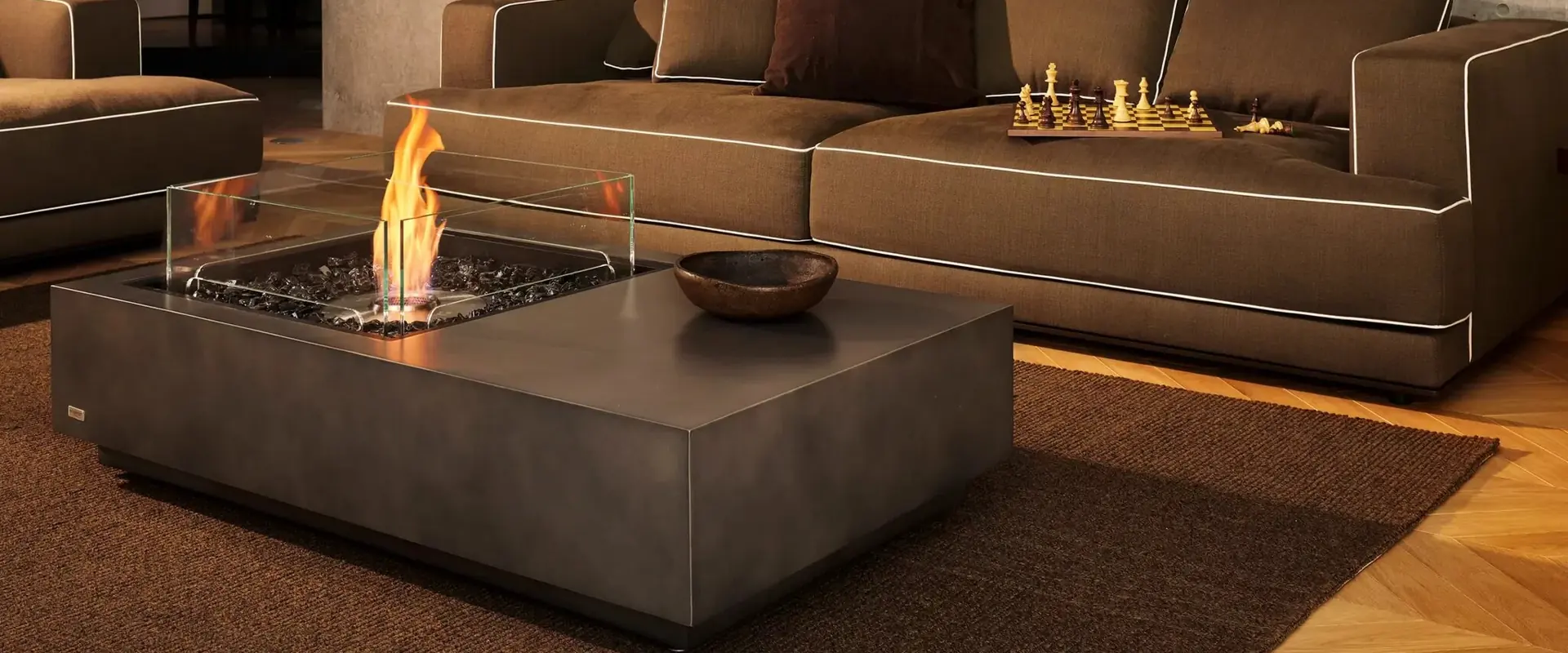

Square concrete EcoSmart Manhattan 50 bioethanol fire table with a glass screen burning on a rug in front of a brown sofa, against a tall board-formed concrete wall

The EcoSmart Burner Range

Eight burners, in linear and round formats. All of them comply with EN 16647, the European standard for bioethanol fireplaces. Sizes include the top tray; burn times are indicative.

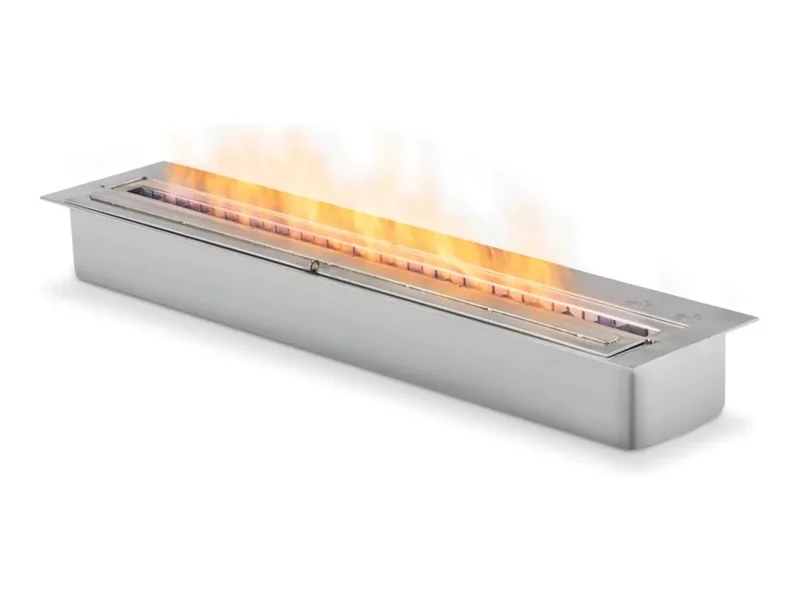

XL1200

The longest linear burner, for wide fireplaces and long fire features.

Size: 1,200 × 195 × 112 mm
Fuel: 10 litres
Burn time: 9 to 14 hours
Finish: steel or black

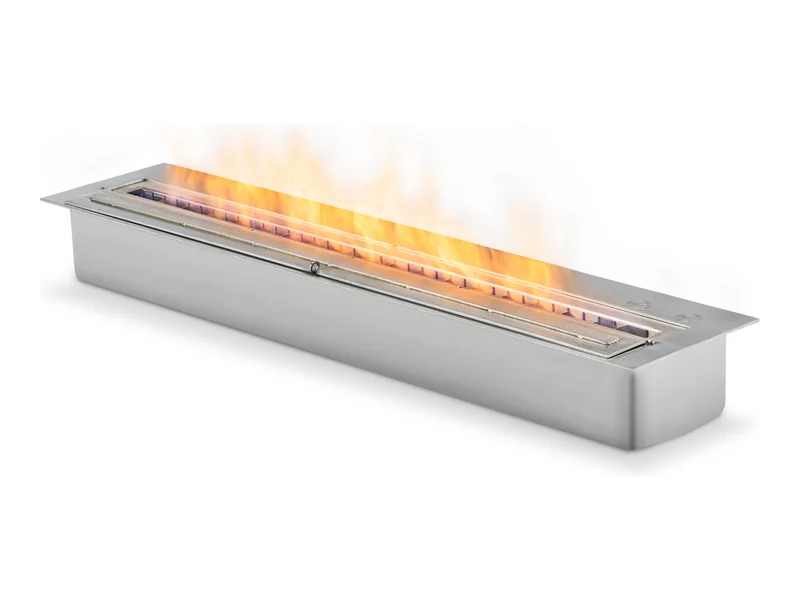

XL900

The linear burner inside EcoSmart’s larger fire tables, such as the Cosmo 50, Wharf 65 and Gin 90.

Size: 908 × 195 × 112 mm
Fuel: 9 litres
Burn time: 8 to 13 hours
Finish: steel or black

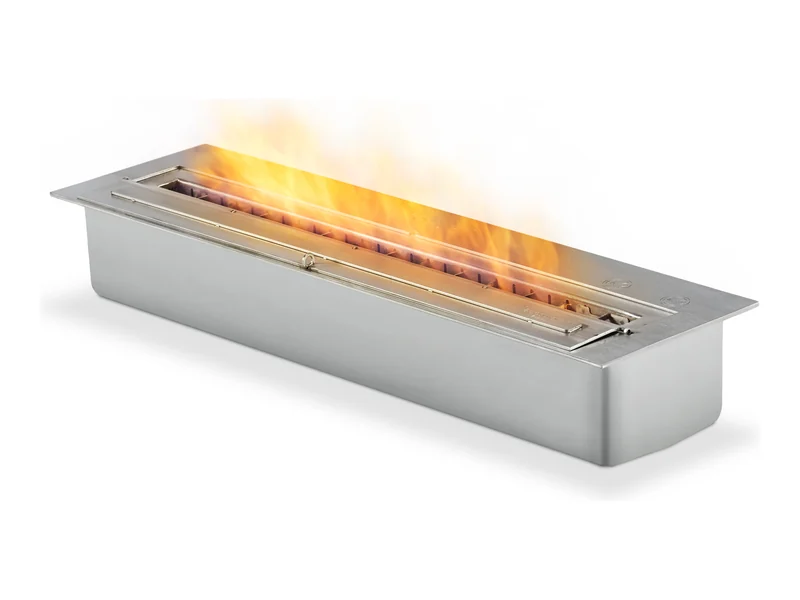

XL700

A linear burner for medium-width fireplaces; it comes with the Grate 36.

Size: 700 × 195 × 112 mm
Fuel: 7 litres
Burn time: 9 to 12 hours
Finish: steel or black

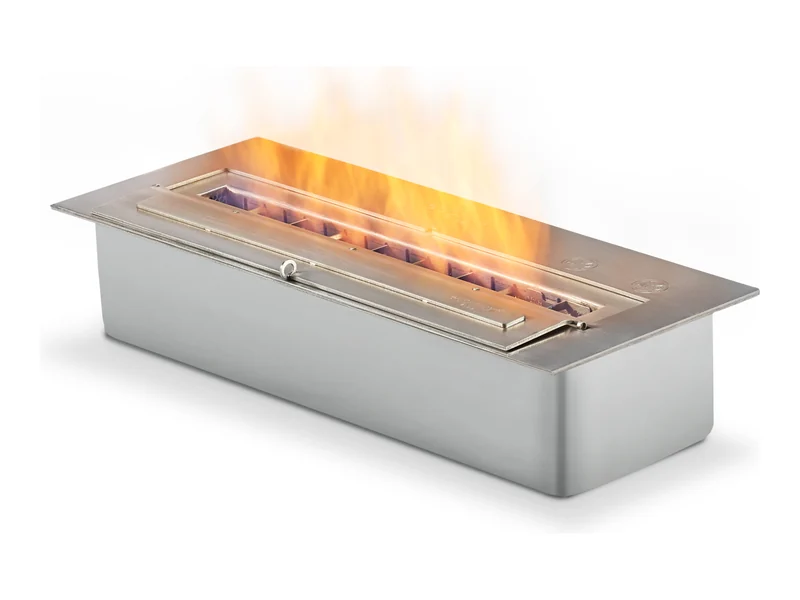

XL500

A compact linear burner for standard fireplace openings; it comes with the Grate 30.

Size: 553 × 248 × 124 mm
Fuel: 5 litres
Burn time: 10 to 13 hours
Finish: steel or black

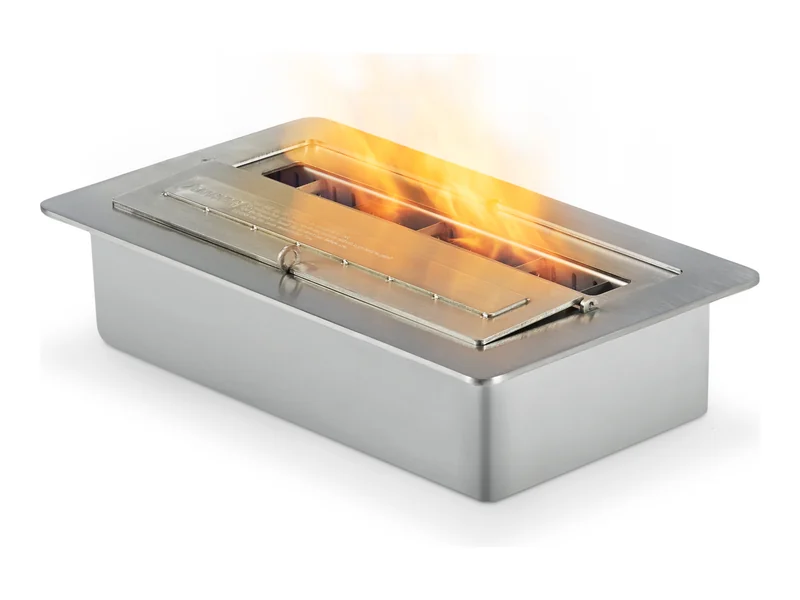

XS340

The smallest linear burner, for compact fireplaces, niches and small surrounds.

Size: 382 × 232 × 107 mm
Fuel: 2.5 litres
Burn time: about 5 hours
Finish: steel or black

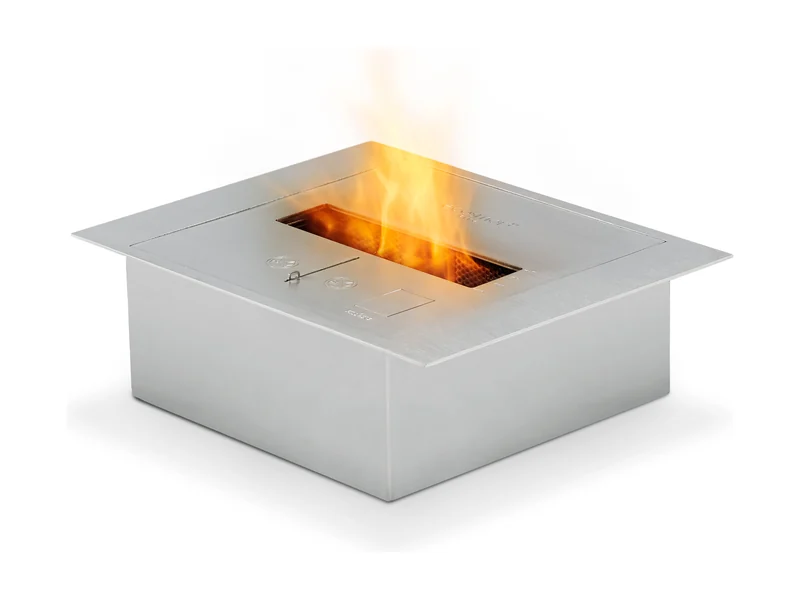

EcoSmart BK5 bioethanol burner in stainless steel, lit, on a white background

BK5

A burner designed to sit inside an existing fireplace; it comes with the Heritage Grate 25.

Size: 400 × 317 × 123 mm
Fuel: 5 litres
Burn time: 7 to 11 hours
Finish: stainless steel

EcoSmart AB3 bioethanol burner in stainless steel, lit, on a white background

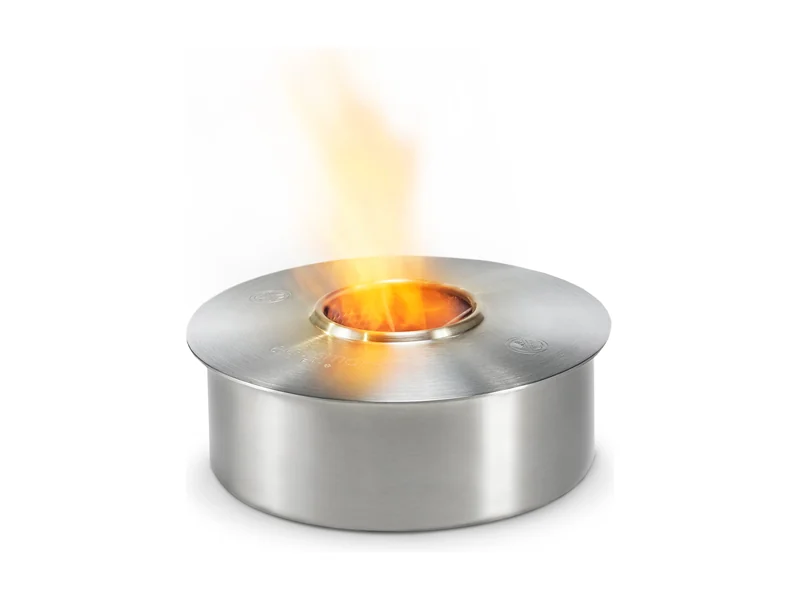

AB3

A small round burner, used in the Mix 600 fire bowl and the Mini T.

Size: 260 × 260 × 94 mm
Fuel: 2.5 litres
Burn time: 8 to 11 hours
Finish: steel or black

EcoSmart AB8 bioethanol burner in stainless steel, lit, on a white background

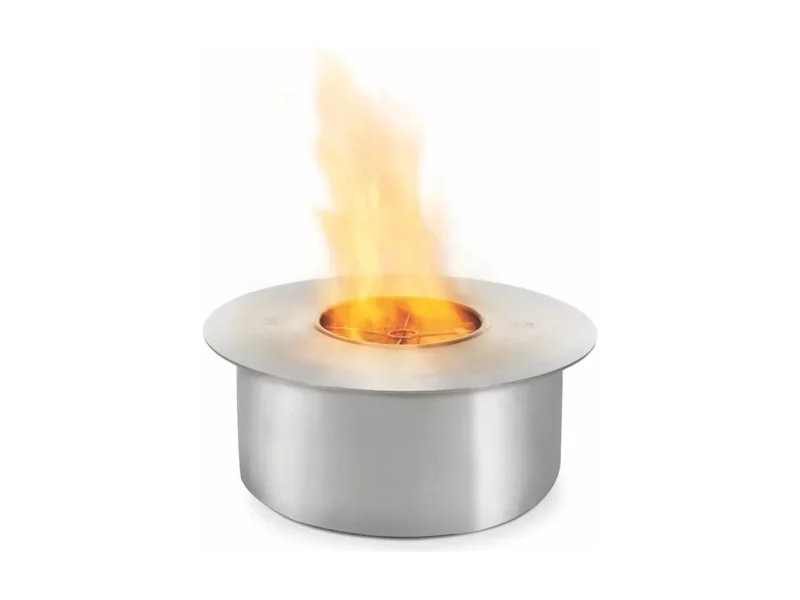

AB8

The round burner of the Pod and Mix 850 fire bowls, the Base, Ark, Manhattan and Martini fire tables and the Grate 18.

Size: 360 × 360 × 152 mm
Fuel: 8 litres
Burn time: 7 to 11 hours
Finish: steel or black

Long EcoSmart Fire Flex bioethanol fireplace built into a pale stone wall unit in a bright living room, with two green velvet armchairs and a marble coffee table in front

Fireplace Grates

For converted wood-burning fireplaces, EcoSmart makes five steel grates, each supplied with its burner: the Grate 18 (AB8), Grate 30 (XL500) and Grate 36 (XL700) in graphite, and the Heritage Grate 25 (BK5) and Heritage Grate 50 (XL900) for larger, traditional hearths.

Where the burners go

EcoSmart Fire Flex bioethanol fireplace set into a veined marble surround in a tall living room with black-framed windows, facing a pair of white armchairs

In a fireplace

A burner or a grate in place of the wood fire, in an existing fireplace or a new recess.

Rectangular concrete EcoSmart Wharf 65 bioethanol fire table burning on the lawn of a courtyard with concrete walls, between dark outdoor sofas and potted olive trees

In a fire table

The Wharf 65 carries an XL900 burner in its concrete top.

Dark EcoSmart Pod 40 bioethanol fire bowl with a glass screen on a timber deck under a pergola, beside an outdoor sofa and facing a lawn and houses

In a fire bowl

The Pod 40 holds an AB8 burner in a concrete bowl.

Choosing the Right Burner

We check the fireplace or recess, its size and ventilation, and choose the burner or grate that fits. EcoSmart bioethanol is always in stock at our showroom.

See it in the showroom

San Pedro de Alcántara, Marbella.
